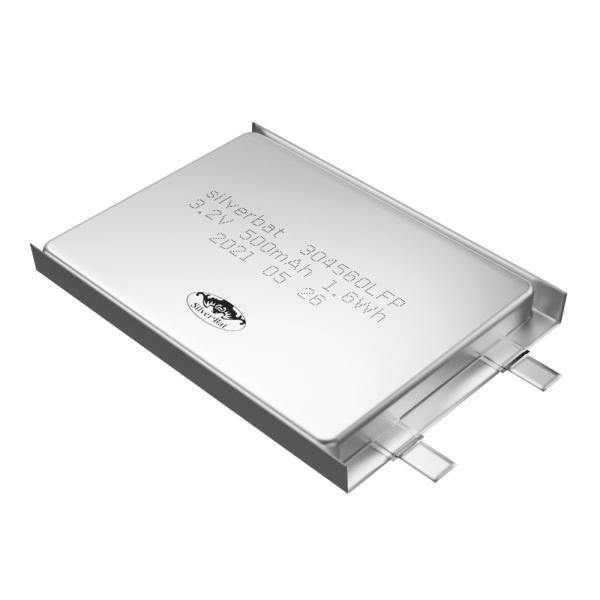

LifePo4 Small Pouch Battery 3.2V 500 MAh For High Temperature Long Service Life

Ask Lasest Price
Brand Name :	Silverbat
Model Number :	LFP304560
Certification :	CE, Rohs , UN38.3 , PSE , UL
Price :	0.9 - 1.3 USD
Payment Terms :	L/C, T/T
Supply Ability :	100000 pieces Per day
Delivery Time :	25 -35 days

Add to Cart

Product Details
Company Profile

LifePo4 Small Pouch Battery 3.2V 500 MAh For High Temperature Long Service Life

LifePo4 Small Pouch battery 3.2V 500 mAh for High temperature long service life

Small LFP Pouch Cell 3.2V 500 MAh Battery For High Temperature Long Life

No	item	specifications	note
1	rated capacity	500 mAh	0.2C discharge
2	nominal capacity	520 mAh	0.2C discharge
3	minimum capacity	500 mAh	0.2C discharge
4	cell weight	10.5 g
5	cell initial impedance	≤120mΩ	3.2V AC 1KHz measured
6	nominal voltage	3.2 V
7	initial votage	3.2 V
8	limited charge voltage	3.65V
9	standard charging method	0.2C CC current charge to 3.65V, then CV charge till current declines to 0.01C
10	Cut-off voltage	2.3V	Load Voltage when discharge ended
11	standard charging current	100mA (0.2C)	CC charge to 3.65 V, then CV charge till current declines to less than 0.01C
12	standard charging time	6h
13	Rapid Charging Current	500 mA (1C)
14	Rapid Charging Time	2h
15	Standard Discharging Current	100mA (0.2C)	CC discharge to 2.3V
16	Max. Discharging Current	500 mA (1C)	CC discharge to 2.3V
17	Operating Temperature Range	Charging:10～45℃
17	Operating Temperature Range	Discharging:-10 ～ 60℃
18	Operating humidity Range	≤ 90%RH
19	Cycle life	≥ 2000 times	@0.2C 90%DOD retention capacity≥80%

1 Lithium iron phosphate battery is intrinsically safer than other lithium NMC system battery, especially for high temperature

performance
2 This lithium polymer pouch cell battery is good for medical and industrial equipment requires safety and endurance

3 The lifePo4 pouch polymer battery cell is easier and cheaper for customization, our existing models range from small capacity like 100mAh to big cell like 100Ah. Welcome to contact us for customized battery pack
