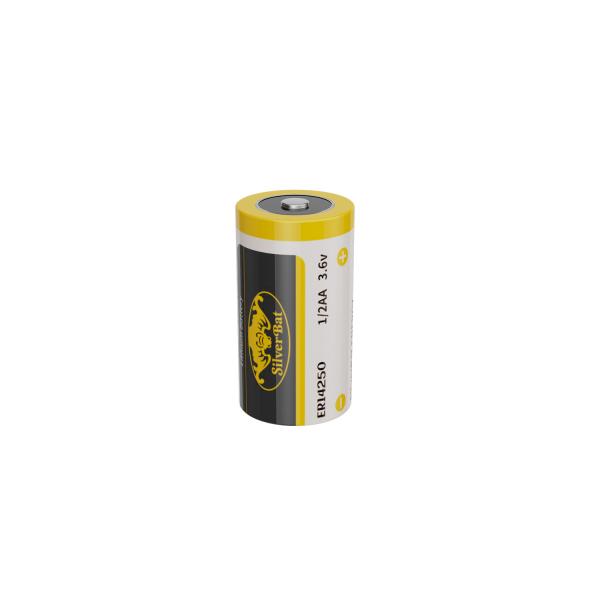

ER14250 1/2AA 3.6V Lithium Battery Li-SOCL₂ Non-Rechargeable
Battery Compatible XL-050F SB-AA02 LS14250 TL-5902 TL-2150
| Item | specifications |
| Nominal Voltage | 3.6V |
| Capacity | 1200 mAh |
| Dimensions | 14.5*25.5mm |
| Cut off voltage | 2V |
| Size Name | 1/2 AA |
| Model | ER14250 |
| Weight | 10 g |
| Charge | Can not charge |
| battery type | Li-SOCl2 Primary battery |
| Self-Discharge | less than 1% Per year @ 205°C |
| operating temperature | -55°c~85°c |
| Shefflife | 10 years |
| Chemistry | Li-SOCl2 |
| Certification | UL, CE, MSDS, UN38.3 |
| Standard discharge current | 1 mA |
| Max Discharge Current | 15 mA |
| Max. Pulse current | 50 mA |
| Customization | Add wire connector tap waterproof housing |
Home automation sensors, door opening detector, temperature sensor,
home alarm, bark collar, door sensor, remote control alarm, water
meter, electricity meter, gas meter, medical equipment, flashlight,
backup power etc
1. Thoroughly read the product datasheet before use, inaccurate
handling may cause leakage, heat, smoke, explosion, or fire,
causing device trouble or injury.
2. DO NOT recharge, short-circuit, puncture, disassemble, deform,
heat, incinerate, or place the battery near a direct flame. This
battery contains flammable materials such as lithium and organic
solvent and performing any of the above actions could cause it to
ignite explode or become damaged.
3. DO NOT over-discharge, do not force discharge. In case the
battery is over-discharged battery has potential of explosion. In
case battery is over discharged, when connected with exterior power
source or connected with other batteries in series, explosion may
occur.
4. Keep this battery out of the reach of children. If it is
swallowed, contact a physician immediately.
5. When storing a battery or throwing it away, be sure to cover it
with tape. If the battery is contacted with other metal objects, it
could cause fire or become damaged.
6. Insert the battery with the "+" and "-" ends correctly oriented.
7. Do not mix use old, new or different brand or type of battery.
8. Do not solder the battery directly.
9. Avoid storing the battery in direct sunlight, or in excessively
hot and humid place.
